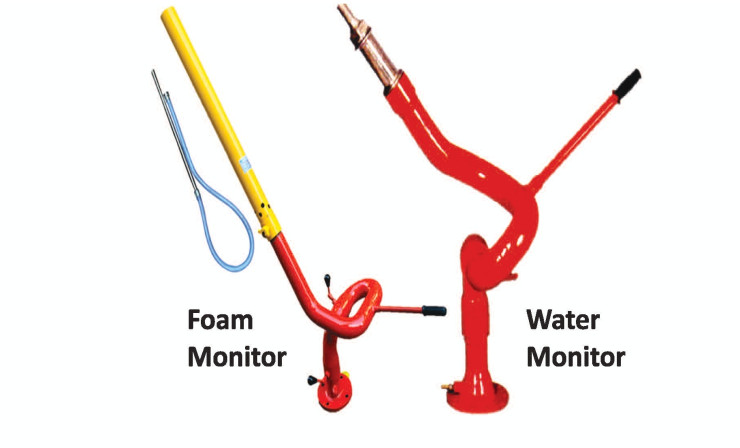

Stand Post Type Water and Foam Monitor

Free

A Stand Post Type Water and Foam Monitor delivers a powerful, long-range water or foam jet with 360° rotation for precise firefighting. Ideal for industrial and high-risk areas.

Category: Fire Fighting Equipment's

Fire Extinguisher

SKU: MLSF-SPM-100

A Stand Post Type Water and Foam Monitor is a high-capacity firefighting device designed for fixed installations. It provides a powerful water or foam jet for long-range fire suppression. Featuring 360° rotation and vertical movement, it ensures precise targeting of fire hazards. Made from corrosion-resistant materials, it is ideal for oil refineries, chemical plants, warehouses, and industrial facilities. Compatible with water or foam supply, it offers reliable fire protection for high-risk areas.

Specification	General Description: A Stand Post Type Water and Foam Monitor is a high-capacity firefighting device designed for fixed installations. It delivers a powerful water or foam jet with 360° rotation and vertical adjustability, ensuring precise targeting for fire suppression in high-risk areas. 2. Key Specifications: Type: Stand Post Mounted Fire Monitor Material: Carbon Steel / Stainless Steel / Gunmetal with Anti-Corrosive Coating Inlet Size: 65mm (2.5") / 80mm (3") / 100mm (4") Flanged Connection Outlet Nozzle Size: 25mm – 50mm (customizable) Flow Rate: 1000 – 4500 LPM (Liters Per Minute) Working Pressure: 7 – 10 bar Horizontal Rotation: 360° Vertical Movement: -45° to +90° Monitor Control: Manual / Remote-Controlled (Optional) Jet Range: Up to 50 meters (varies by pressure and flow) Compatible Agents: Water / Foam Foam Induction: Optional Inline Inductor or Self-Inducing Nozzle Mounting Type: Fixed Stand Post Installation Compliance Standards: IS 8442 UL/FM Approved (Model Dependent) NFPA 11 & NFPA 13 3. Application Areas: Oil refineries & petrochemical plants Warehouses & storage facilities Chemical industries Airports & docks Power plants & industrial complexes

Specification

General Description: A Stand Post Type Water and Foam Monitor is a high-capacity firefighting device designed for fixed installations. It delivers a powerful water or foam jet with 360° rotation and vertical adjustability, ensuring precise targeting for fire suppression in high-risk areas. 2. Key Specifications: Type: Stand Post Mounted Fire Monitor Material: Carbon Steel / Stainless Steel / Gunmetal with Anti-Corrosive Coating Inlet Size: 65mm (2.5") / 80mm (3") / 100mm (4") Flanged Connection Outlet Nozzle Size: 25mm – 50mm (customizable) Flow Rate: 1000 – 4500 LPM (Liters Per Minute) Working Pressure: 7 – 10 bar Horizontal Rotation: 360° Vertical Movement: -45° to +90° Monitor Control: Manual / Remote-Controlled (Optional) Jet Range: Up to 50 meters (varies by pressure and flow) Compatible Agents: Water / Foam Foam Induction: Optional Inline Inductor or Self-Inducing Nozzle Mounting Type: Fixed Stand Post Installation Compliance Standards: IS 8442 UL/FM Approved (Model Dependent) NFPA 11 & NFPA 13 3. Application Areas: Oil refineries & petrochemical plants Warehouses & storage facilities Chemical industries Airports & docks Power plants & industrial complexes
