Swinging Type Well Mounted First Aid Hose Reel Drum

Free

A Swinging Type Wall Mounted First Aid Hose Reel Drum is a fire safety device with a flexible, wall-mounted design for easy deployment. It features a durable hose, control nozzle, and quick water activation, ensuring efficient fire response in commercial and industrial settings.

Category: Fire Fighting Equipment's

Fire Extinguisher

SKU: MLSF-HR-SWM-30

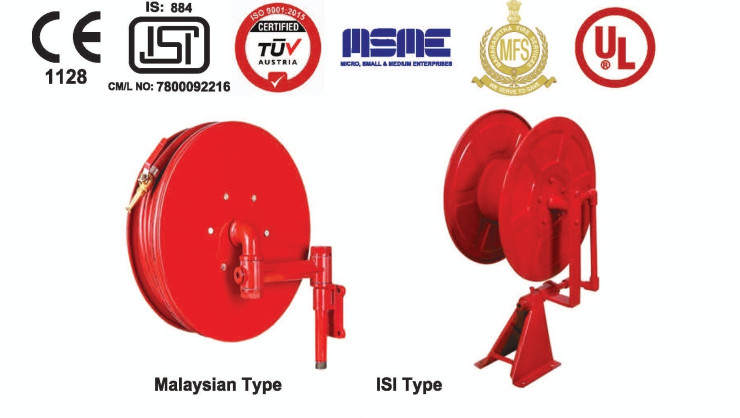

A Swinging Type Wall Mounted First Aid Hose Reel Drum is a fire safety device designed for quick and efficient firefighting. It features a swinging wall-mounted design, allowing flexible movement for easy deployment. The reel holds a durable fire-resistant hose, typically 19mm to 25mm in diameter, with a standard length of 30 meters. It comes equipped with a control nozzle for adjustable water flow and a manual or automatic valve for immediate activation. Ideal for commercial, industrial, and public buildings, this hose reel ensures rapid fire response and enhanced safety.

Specification	Swinging Type Wall Mounted First Aid Hose Reel Drum – Specifications 1. General Description: A Swinging Type Wall Mounted First Aid Hose Reel Drum is a compact and efficient fire safety device designed for quick access and easy operation in emergency situations. The swinging mechanism allows flexibility in hose direction for convenient use. 2. Key Specifications: Type: Swinging Type, Wall Mounted Hose Diameter: 19mm (¾") or 25mm (1") Hose Length: 20m, 25m, or 30m (Standard: 30m) Working Pressure: 12 bar (max) Test Pressure: 18 bar Material of Reel Drum: Mild Steel (MS) with anti-corrosion coating Finish: Red Powder Coated (Fire Red) Inlet Size: 25mm (1") BSP / NPT Outlet Nozzle: Jet & Spray Nozzle (Manual Control) Valve Type: Ball Valve or Gate Valve Mounting Type: Wall Mounted with Swivel Arm for 180° Rotation Operation: Manual operation with a control valve Compliance Standards: IS 884:2010 EN 671-1 BS 5306 3. Application Areas: Commercial buildings Industrial facilities Warehouses Schools and hospitals Shopping malls

Specification

Swinging Type Wall Mounted First Aid Hose Reel Drum – Specifications 1. General Description: A Swinging Type Wall Mounted First Aid Hose Reel Drum is a compact and efficient fire safety device designed for quick access and easy operation in emergency situations. The swinging mechanism allows flexibility in hose direction for convenient use. 2. Key Specifications: Type: Swinging Type, Wall Mounted Hose Diameter: 19mm (¾") or 25mm (1") Hose Length: 20m, 25m, or 30m (Standard: 30m) Working Pressure: 12 bar (max) Test Pressure: 18 bar Material of Reel Drum: Mild Steel (MS) with anti-corrosion coating Finish: Red Powder Coated (Fire Red) Inlet Size: 25mm (1") BSP / NPT Outlet Nozzle: Jet & Spray Nozzle (Manual Control) Valve Type: Ball Valve or Gate Valve Mounting Type: Wall Mounted with Swivel Arm for 180° Rotation Operation: Manual operation with a control valve Compliance Standards: IS 884:2010 EN 671-1 BS 5306 3. Application Areas: Commercial buildings Industrial facilities Warehouses Schools and hospitals Shopping malls
