Oblique Type Landing Valve

Free

An Oblique Type Landing Valve is a high-pressure fire safety valve in wet riser systems, designed for easy hose connection and efficient water flow in industrial and high-rise buildings.

Category: Fire Fighting Equipment's

Fire Extinguisher

SKU: MLSF-LV-OBQ-65

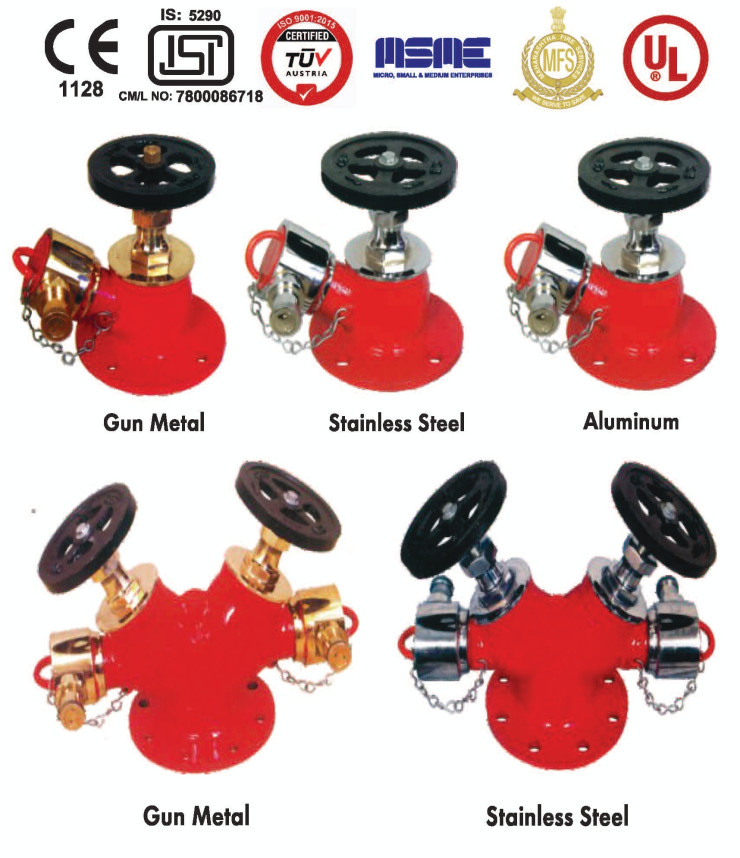

An Oblique Type Landing Valve is a vital fire safety component used in wet riser systems to provide a controlled water supply for firefighting operations. Designed at an oblique (angled) position, it ensures easy hose connection and efficient water flow. Made from corrosion-resistant materials like gunmetal or stainless steel, it operates under high pressure, making it ideal for industrial, commercial, and high-rise buildings. The valve features a flanged or screwed inlet, a handwheel for smooth operation, and complies with international fire safety standards.

Specification	General Description: An Oblique Type Landing Valve is a key component in wet riser fire-fighting systems, designed to provide a controlled and high-pressure water supply for firefighting operations. Its angled (oblique) design allows for easy hose connection and efficient water flow, making it suitable for industrial, commercial, and high-rise buildings. 2. Key Specifications: Type: Oblique Type Landing Valve Body Material: Gunmetal / Stainless Steel / Cast Iron with Epoxy Coating Inlet Connection: 65mm (2.5") Flanged / Screwed BSP/NPT Outlet Connection: 65mm (2.5") Female Instantaneous Coupling Handwheel Material: Aluminum Alloy / Cast Iron Working Pressure: Up to 15 bar Test Pressure: 21 bar (Hydrostatic Test) Flow Rate: 900 LPM (Liters per Minute) at 7 bar Valve Type: Screw-Down Type (S.D.T.) Finish: Red Epoxy Powder Coated or Natural Brass Finish Mounting: Vertical Installation in Fire Hydrant or Wet Riser Systems Compliance Standards: BS 5041-1 IS 5290 EN 671 3. Application Areas: High-rise buildings Industrial and manufacturing plants Commercial complexes and shopping malls Warehouses and storage facilities Airports, ports, and transportation hubs

Specification

General Description: An Oblique Type Landing Valve is a key component in wet riser fire-fighting systems, designed to provide a controlled and high-pressure water supply for firefighting operations. Its angled (oblique) design allows for easy hose connection and efficient water flow, making it suitable for industrial, commercial, and high-rise buildings. 2. Key Specifications: Type: Oblique Type Landing Valve Body Material: Gunmetal / Stainless Steel / Cast Iron with Epoxy Coating Inlet Connection: 65mm (2.5") Flanged / Screwed BSP/NPT Outlet Connection: 65mm (2.5") Female Instantaneous Coupling Handwheel Material: Aluminum Alloy / Cast Iron Working Pressure: Up to 15 bar Test Pressure: 21 bar (Hydrostatic Test) Flow Rate: 900 LPM (Liters per Minute) at 7 bar Valve Type: Screw-Down Type (S.D.T.) Finish: Red Epoxy Powder Coated or Natural Brass Finish Mounting: Vertical Installation in Fire Hydrant or Wet Riser Systems Compliance Standards: BS 5041-1 IS 5290 EN 671 3. Application Areas: High-rise buildings Industrial and manufacturing plants Commercial complexes and shopping malls Warehouses and storage facilities Airports, ports, and transportation hubs
